Overview

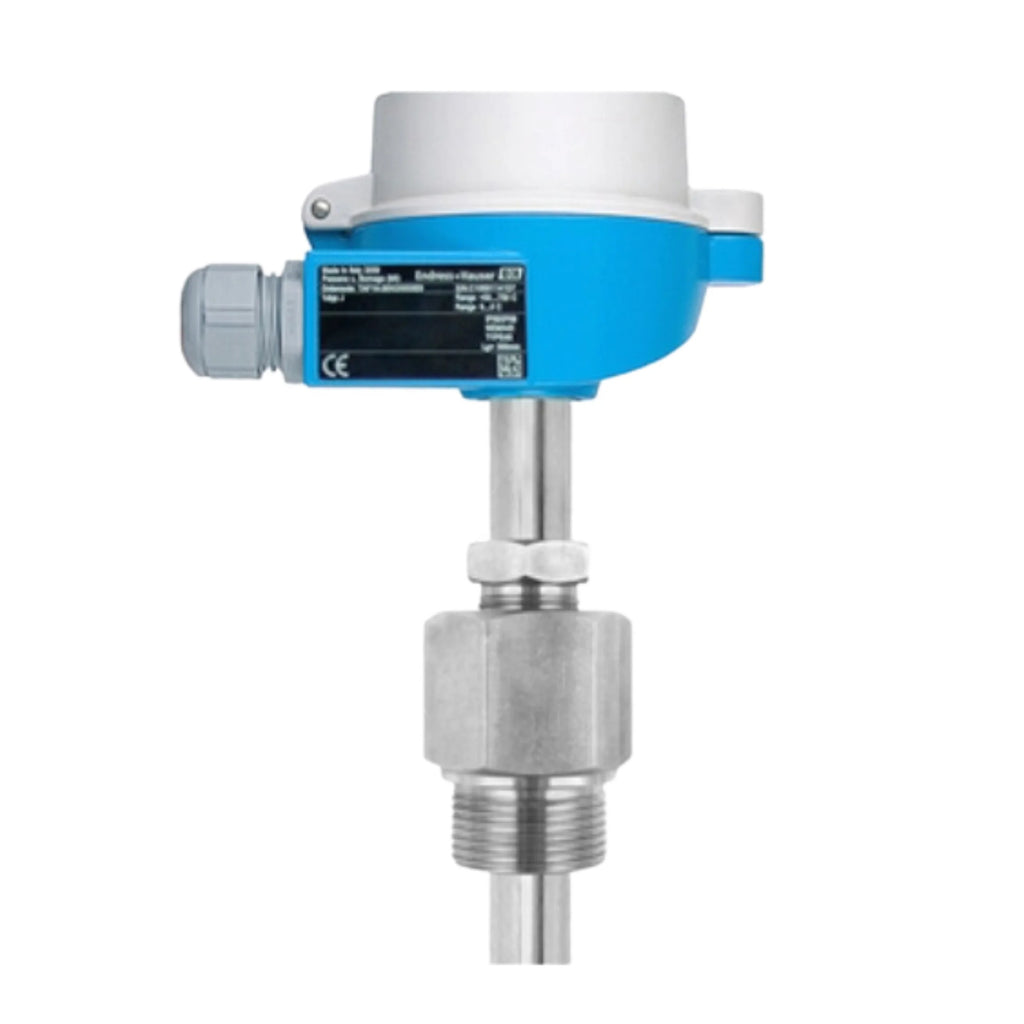

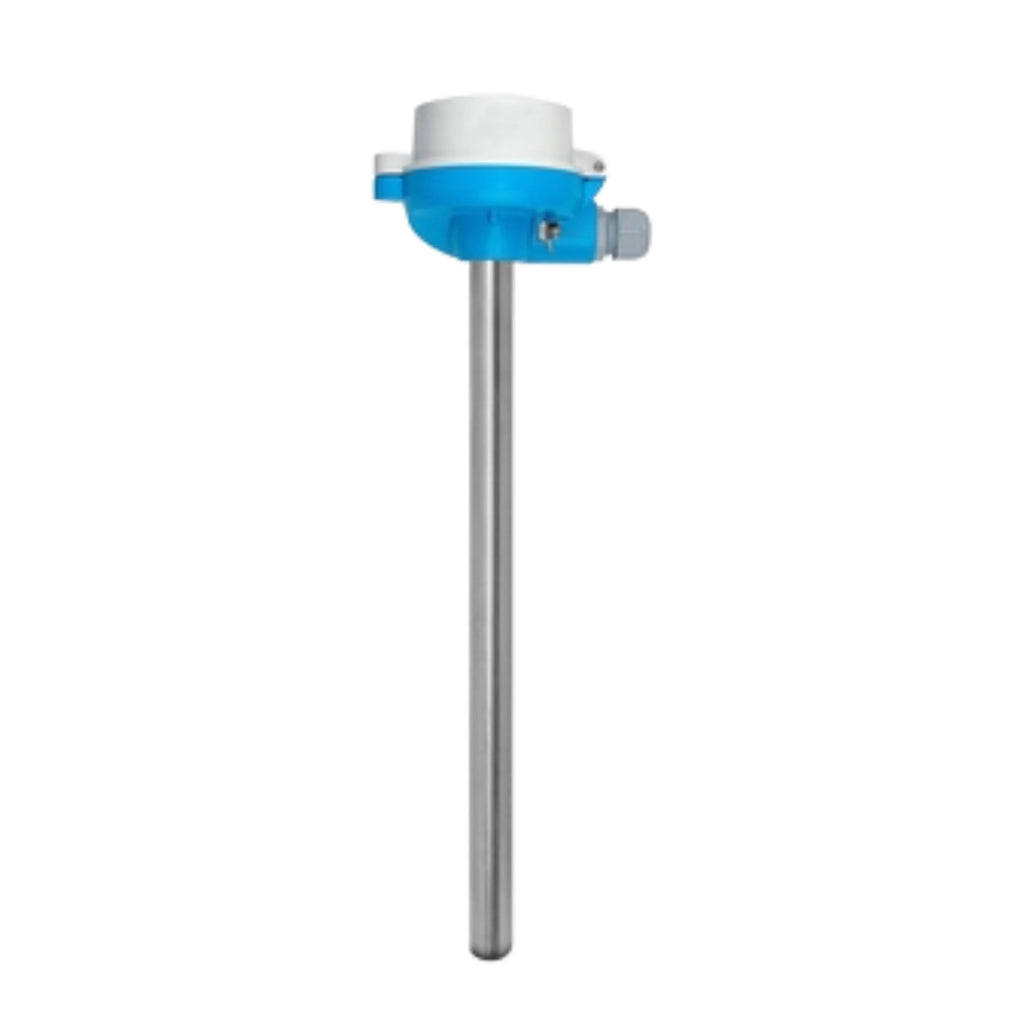

Designed for the extremely high process temperatures in cement production, steel treatment, incinerators and fluidized bed furnaces.
Specs at a glance
Accuracy：class 2 acc. to IEC 60584
Max. process pressure (static) at 20 °C: 1 bar (15 psi)
Operating temperature range
Type K:-40 °C ...1.100 °C(-40 °F ...2.012 °F)
Type J:-40 °C ...750 °C(-40 °F ...1.382 °F)
Type N:-40 °C ...1.150 °C(-40 °F ...2102 °F)
Type S:0 °C ...1.400 °C(32 °F ...2.552 °F)
Max. immersion length on request：up to 4.525,00 mm (178,15'')
Benefits
-
Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance
-
Long-term stable measurement due to sensor protection with non-porous materials
-
Flexible product selection thanks to modular design
-
Optimized life cycle costs by means of replaceable spare parts
Application
Measuring points with extremely high process temperatures require this high-temperature thermometer with a ceramic or metal thermowell as well as thermocouples made from special metals such as platinum and rhodium. The thermowell made from special materials protects from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety
Applicable for temperature measurement in cement production, steel treatment, incinerators and fluidized bed furnaces. The TAF16 contains a single or double thermocouple insert and a metal or ceramic protection tube as well as an optional internal sheath Process temperatures: up to +1,700 °C (+3,092 °F)
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
TAF16
|
|
Theory
|
Temperature controller, Temperature Sensor, Temperature Transmitter, Temperature Recorder
|
|
Max. process pressure (static)
|
at 20 °C: 1 bar (15 psi)
|
|
Accuracy
|
class 2 acc. to IEC 60584
|
|
Integration head transmitter
|
yes
|
|
Certification
|
SIL (transmitter only)
|
|
Operating temperature range
|
-40 °C ...1.100 °C
|
|
Tip shape
|
straight
|
|
Process connection
|
G1/2" G3/4" G1" G11/4" G11/2"
|
|
Place of Origin
|
Germany
|
|
Customized support
|
ODM
|
|
Model Number
|
TAF16
|
