Overview

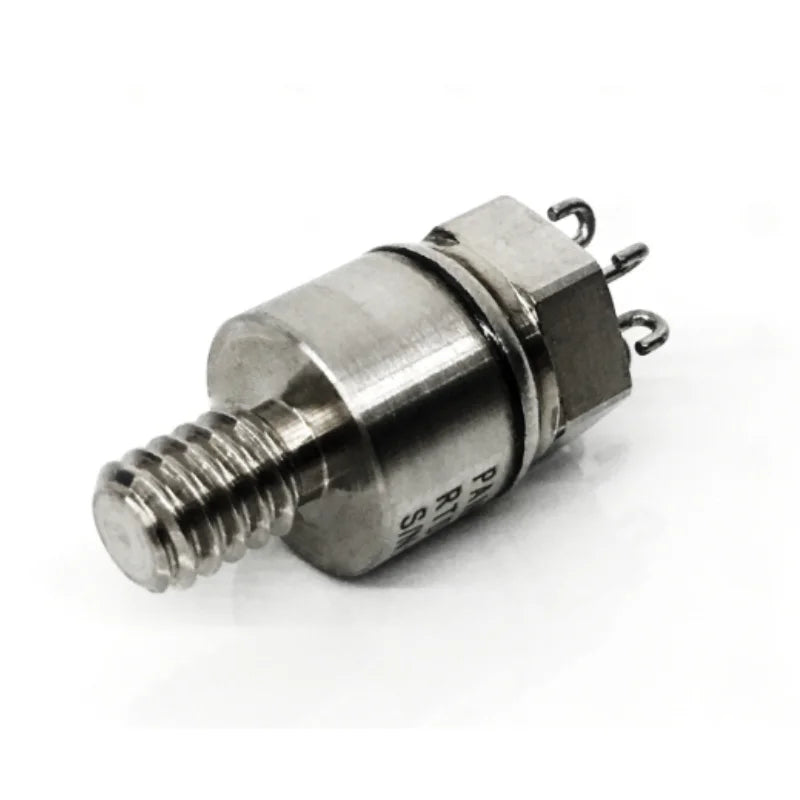

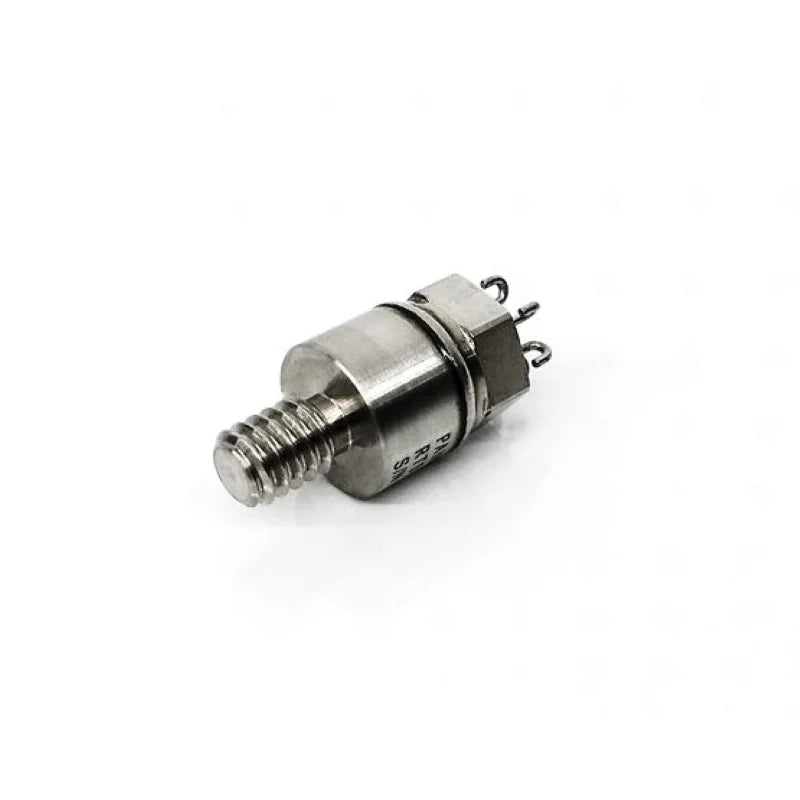

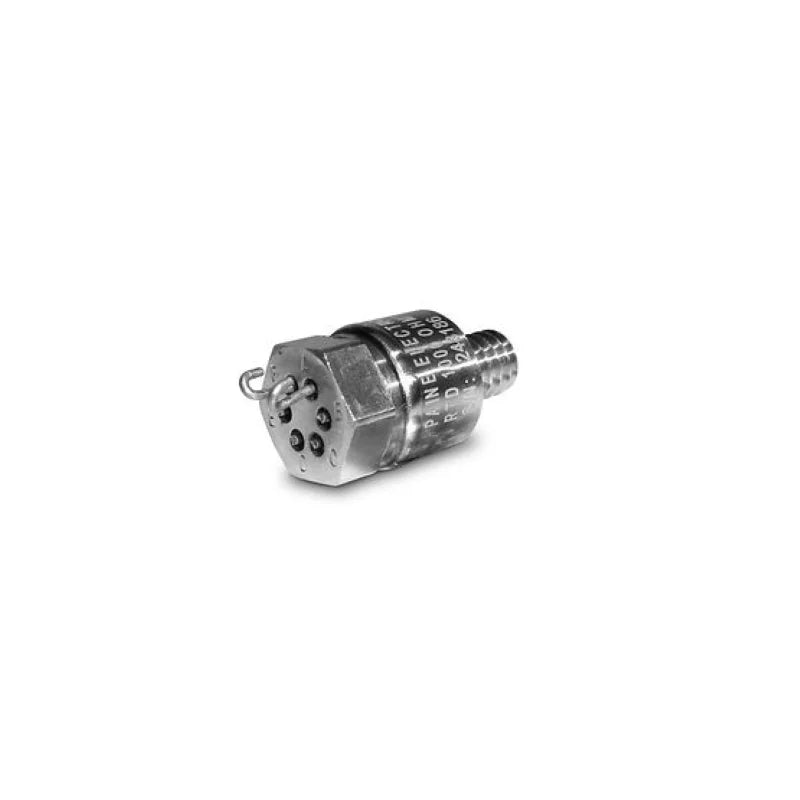

Paine™ 215-01-080 Series, Surface, Temperature Sensor
The Paine 215-01-080 Series, Surface, Temperature Sensor is a platinum, resistance temperature detector (RTD) probe designed for high temperatures up to 482 °F (250 °C). Engineered as a compact and corrosion-resistant sensor, this RTD probe features long-term performance with reliability, stability and repeatability. These sensors provide accuracy and rapid response times and are well-suited for critical surface temperature measurements of machinery and process equipment.
Features
* Sensor withstands corrosion and oxidation in harsh and extreme environments for durability
* Fast response times produce precise measurement data for improved efficiency
* Offered in 0.515-in. maximum diameter package for a very small form factor
* Long-term stability and accuracy provides reliable and consistent measurement performance
* Customizable sensor options available for fit-for-use designs
* Fast response times produce precise measurement data for improved efficiency
* Offered in 0.515-in. maximum diameter package for a very small form factor
* Long-term stability and accuracy provides reliable and consistent measurement performance
* Customizable sensor options available for fit-for-use designs
![]()
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
EMERSON/ROSEMOUNT
|
|
Model Number
|
Paine™ 215-01-080 Series, Surface, Temperature Sensor
|
|
Operating temperature
|
–4 to +482 °F (–20 to +150 °C)
|
|
Temperature coefficient
|
Alpha = 0.00385 per °C
|
|
Platinum resistance temperature detector (RTD)
|
Class A, Pt 1 kΩ ± 0.06% at 32 °F (0 °C)
|
|
Material
|
Hex header: Alloy X750 • Case: Alloy 718, UNSN07718, solution annealed and aged to Rockwell C40 maximum
|
|
External pressure rating
|
20,000 psi (1378 bar) maximum
|
|
Vibratio
|
20–2000 Hz, 10 g sinusoidal scan, 1 hour/axis
|
|
Shock
|
75 G’s peek, 3.5–5 milliseconds, six shocks each of six directions. (No pin is electrically connected to the case).
|
|
Pressure fitting
|
1/4 20 UNC-2A
|
|
Weight
|
2 ounces maximum (0.05 kg)
|
|
Installation information
|
Manifold/flush mount
|
|
Insulation resistance
|
5,000 MΩ minimum at 50 VDC at 75 °F (23 °C) all pins to case
|
|
Electrical connections
|
Available with pin connectors, lead wires, and j-hooks
|
