Overview
More simplicity with the specialist for hygienic applications.
Specs at a glance
* Accuracy
+/-1 mm (0.04 in)
* Process temperature
-40 … +200 °C (-40 … +392 °F)
* Process pressure / max. overpressure limit
Vacuum...25 bar (363 psi)
* Max. measurement distance
80 m (262 ft)
* Main wetted parts
PEEK or PTFE
+/-1 mm (0.04 in)
* Process temperature
-40 … +200 °C (-40 … +392 °F)
* Process pressure / max. overpressure limit
Vacuum...25 bar (363 psi)
* Max. measurement distance
80 m (262 ft)
* Main wetted parts
PEEK or PTFE
Field of application

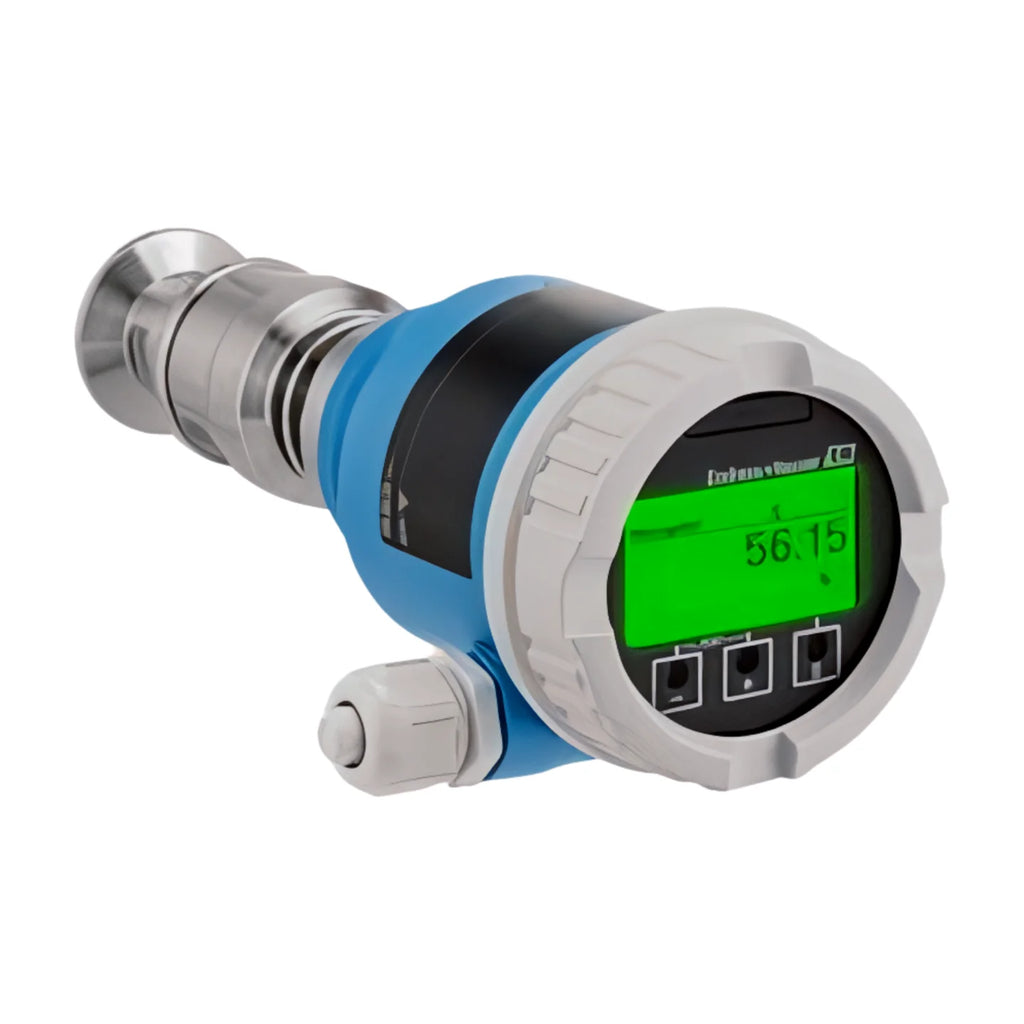

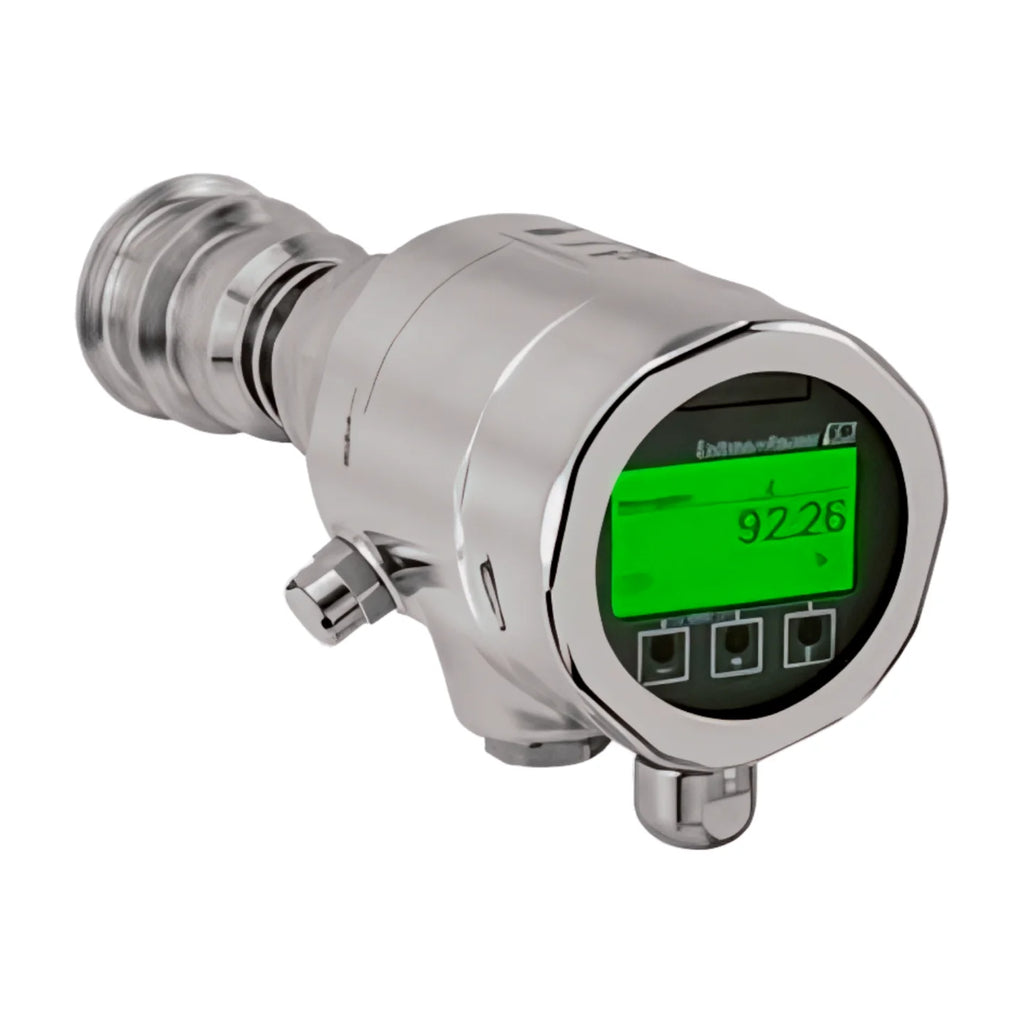

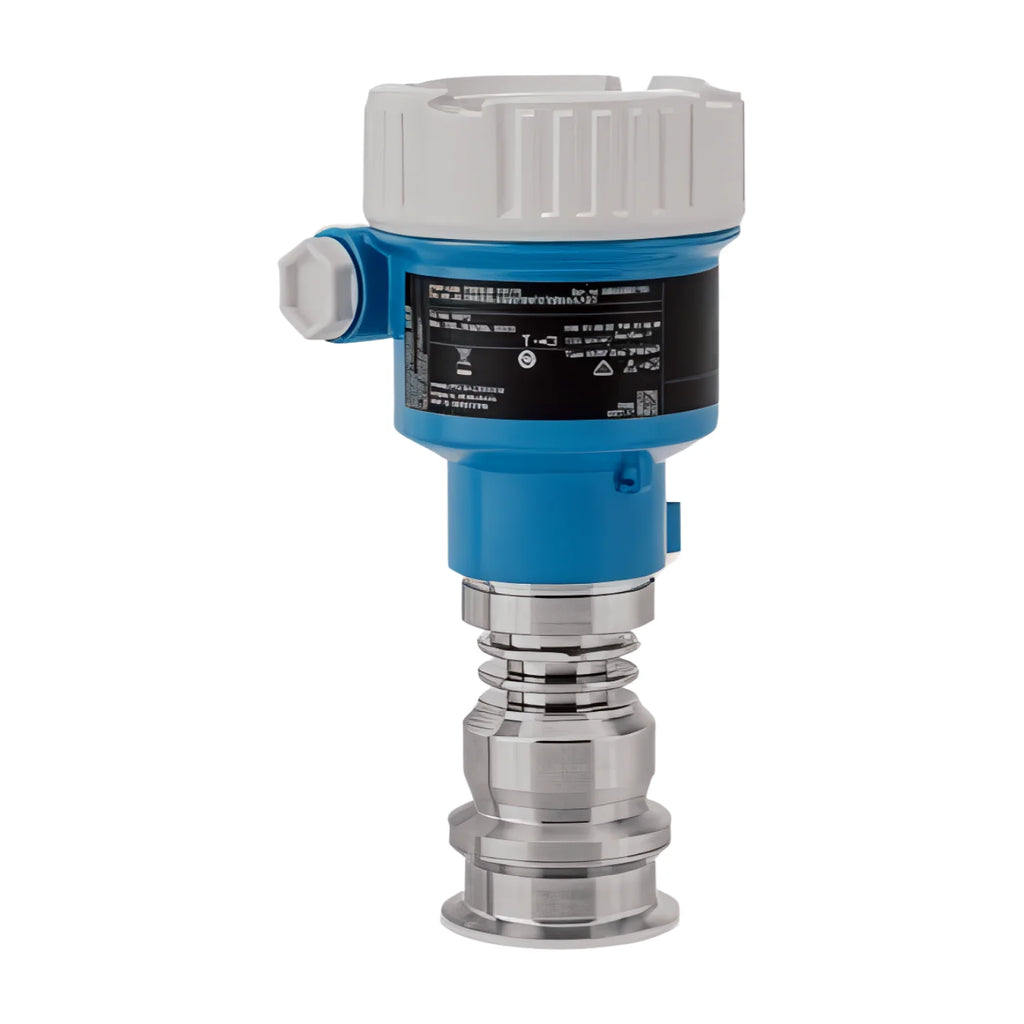

Micropilot FMR63B is part of the new generation of 80 GHz radar sensors. Thanks to its complete hygienic design it is suitable for continuous non-contact level measurement in hygienic applications. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology offers verification and monitoring functions to identify anomalies or checking the measurement accuracy.
The Micropilot FMR63B is for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
* Process connections: M24 adapters and hygienic process connections
* Temperature: –40 to +200 °C (-40 to 392° F)
* Pressure: –1 to +25 bar (-14.5 to +362.6 psi)
* Maximum measuring range: 80 m (164 ft)
* Accuracy: ±1 mm (0.04 in)
* W-band: 80 GHz
* EHEDG, 3-A, ASME BPE, International explosion protection certificates, 5- or 10-point linearity protocol
The Micropilot FMR63B is for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
* Process connections: M24 adapters and hygienic process connections
* Temperature: –40 to +200 °C (-40 to 392° F)
* Pressure: –1 to +25 bar (-14.5 to +362.6 psi)
* Maximum measuring range: 80 m (164 ft)
* Accuracy: ±1 mm (0.04 in)
* W-band: 80 GHz
* EHEDG, 3-A, ASME BPE, International explosion protection certificates, 5- or 10-point linearity protocol
Benefits
* Fulfils highest compliance requirements of the industry
* Easy handling through intuitive operation and wizards, for commissioning and verification
* Increased productivity thanks to process monitoring, verification also of the radar´s accuracy and diagnostics in the running process with Heartbeat Technology
* Simple Display of device status – A change in the backlighting from green to red highlights errors immediately
* Simple device integration into asset management systems through digital communication
* Easy handling through intuitive operation and wizards, for commissioning and verification
* Increased productivity thanks to process monitoring, verification also of the radar´s accuracy and diagnostics in the running process with Heartbeat Technology
* Simple Display of device status – A change in the backlighting from green to red highlights errors immediately
* Simple device integration into asset management systems through digital communication
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Micropilot FMR63B – 80 GHz
|
|
Material
|
PEEK or PTFE
|
|
Mode
|
Radar Sensor
|
|
Measuring Principle
|
Level radar
|
|
Characteristic / Application
|
Premium device for continuous non-contact level measurement
with hygienic requirements (ASME BPE, USP Class VI); |
|
Specialities
|
Heartbeat Technology,
SIL 2/3 according to IEC 61508, Bluetooth® commissioning; Operation and maintenance with SmartBlue app; HistoROM; RFID TAG for easy identification; Very narrow beam angle |
|
Supply / Communication
|
2-wire (HART/ PROFIBUS PA)
PROFINET with Ethernet-APL Bluetooth® wireless technology |
|
Frequency
|
W-Band (~80 GHz)
|
|
Accuracy
|
+/-1 mm (0.04 in)
|
|
Ambient Temperature
|
-40 … +85 °C (-40 … +185 °F)
|
|
Process Temperature
|
-40 … +200 °C (-40 … +392 °F)
|
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...25 bar (363 psi)
|
|
Main Wetted Parts
|
PEEK or PTFE
|
|
Process Connection
|
Thread:M24
|
|
Process connection hygienic
|
NEUMO BioControl;
Slotted-nut DIN11851; Varivent; Tri-Clamp ISO2852 |
|
Max. Measurement Distance
|
80 m (262 ft)
|
|
Communication
|
HART/ PROFIBUS PA
PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
|
Certificates / Approvals
|
IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex,
INMETRO Ex, NEPSI Ex, UK Ex; |
|
Safety Approvals
|
Overfill protection WHG;
KTW drinking water approval W270; NSF/ANSI 61 drinking water approval; SIL 2/ SIL 3 |
|
Design Approvals
|
Acceptance test certificate 3.1, EN10204;
EU Food Contact Material (EC) 1935/2004; US Food Contact Material FDA CFR 21; Declaration of Conformity ASME B31.3; Conformity to cGMP; CoC ASME BPE; CRN approval |
|
Hygienic approvals
|
3-A;EHEDG;CoC-ASME BPE
|
|
Options
|
Display,
Customized settings, App 'SmartBlue' for commissioning and operation via Bluetooth Gas-tight implementation; Overvoltage protection; PWIS free |
|
ApplicationLimits
|
Process temp. > 200°C (392°F) -> FMR62
Strong foam, stilling well and bypass (>10 m) -> FMR5x,FMP5x |
